$76,900.00
Additional Information
| Manufacturer | Kaufman |
|---|---|
| Year | 2023 |
DISCLAIMER: Price quoted does not include any freight or delivery charges. Specifications are believed to be correct but may contain errors and/or omissions. Pictures are representative and may not be identical. Description and Images © West-Mark

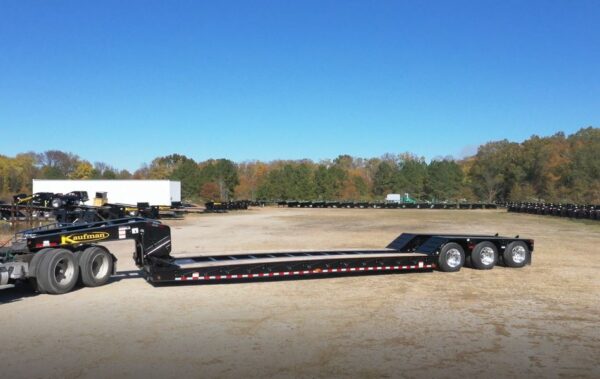

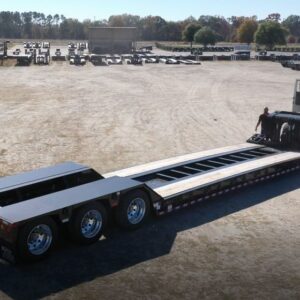

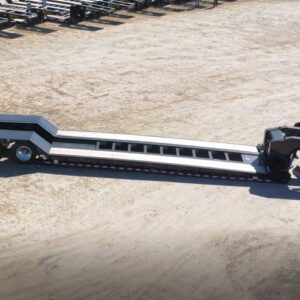

2023 Kaufman Hydraulic Neck Lowboy Trailer (FRDT-55-22-26-A)
2023 Kaufman Hydraulic Neck Lowboy Trailer
CAPACITY
Capacity: 110,000 Lb Overall
Concentrated: 110,000 Lb In 12’
OVERALL LENGTH & WIDTH
Overall Length: 51.5’
Overall Width: 8’6″‘

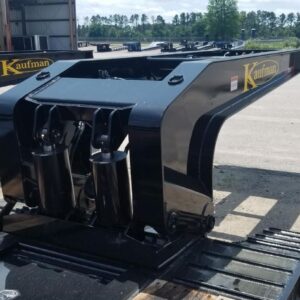

GOOSENECK
51” 5th Wheel Height
5 Position Variable Ride Height
94” Swing Clearance
16” King Pin Setting
Hydraulics Run Off Wet Kit
Air Operated Lock With Manual Safety Latch
MAIN DECK
26’ Long
T-1 Flange, 80K Web
(4) 16” Fabricated I-Beams
22” Loaded Deck Height
8” Ground Clearance
10” & 4” Stubbed Jr. I-Beams On Alternating 12” Centers

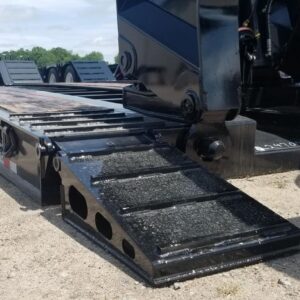

31” Front Flip Ramps
7 Bent D-Rings Per Side
1 3/4” Apitong Decking – Raised, Open Center
Toolbox In Front Of Deck
4 Flat D-Rings In Toolbox
13 Chain Drops Per Side
Heavy-Duty Swing Out Outriggers On 24” Centers
Heavy-Duty Flatback Outriggers, Front And Center
2 Flag Holders
Bucket Well At Rear, Plate On Bottom
4 Flat D-Rings In Bucket Well
Front Ramp Upper Flange Reinforcement
REAR BRIDGE
15’ Long
Rear Transition With 32° Slope
40” Loaded Deck Height
Covered Wheels
Covered Boom Trough – Bolt-on Bottom Plate
2 Flat D-Rings On Main Beams At Rear
2 Chain Drops On Each Bolster
2 Flag Holders
2 Stake Pockets In Tail Channel for Wide Load Sign
Frame Reinforcement For Booster
SUSPENSION
25,000 LB Air Ride
Raise And Lower Valve
Manual Ride Height Control
AXLES
(3) 25,000 Lb Nominal
Air Lift On 3rd Axle
Hub Pilot, Outboard Drums
Auto Slack Adjusters
54” Axle Spacing
Limit Chains On All Axles
4th Axle capable
WHEELS & TIRES
8.25 X 22.5 Rims Outer Aluminum
755 / 70R / 22.5 Tires
Optional:
All Steel Wheels or Combo Aluminum/Outside Steel/Inside
Brakes All wheel 16.5″ x 7″ air brakes, automatic slack adjusters, and 4S/2M ABS
LIGHTING
4″ Amber Strobe Tail Light
12V Sealed Grote Harness
Rubber Mounted LED Lights
2 Tail Light Package With
Aluminum Cover
2 Clearance Lights Per Side
1 Mid-Turn Light Per Side
7 Pole Electric Socket
PAINT
Black, IH Red, CAT Yellow
Air & Electric Done After Paint
WARRANTY
5 Year Structural
1 Year Paint
