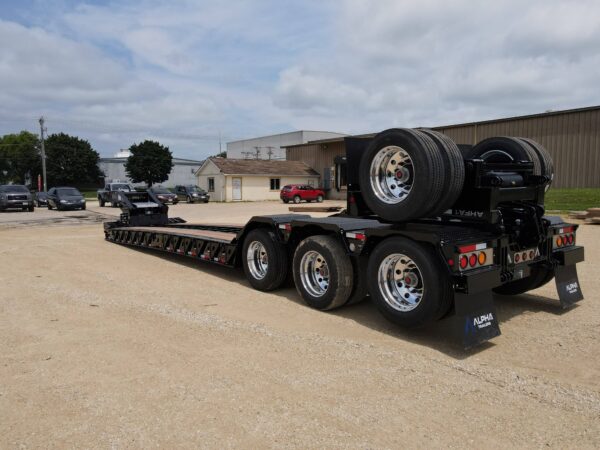

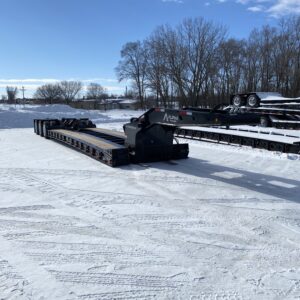

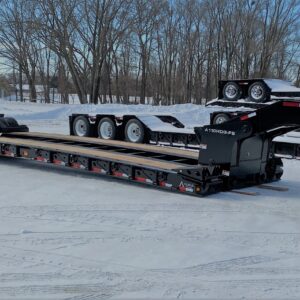

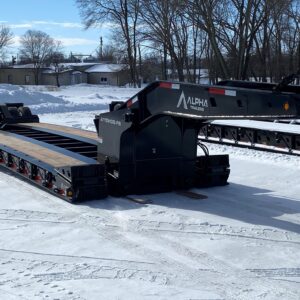

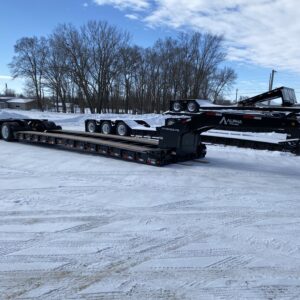

55 Ton Lowboy

SKU: 55 Ton Lowboy Categories: , ,

A110HDG w/ Hydraulic Flip Axle
51″ 5th Wheel Height
15″ & 41″ King Pin
110″ & 84″ Swing Clearance
5 Position Ride Height
Hydraulics run by Wet Kit
Air Operated Lock pin
14′ 1″ Long
39″ Loaded Deck Height
32 Degree Rear Transition
Open Wheels with Bolsters
Chain Slots in Each Bolster
2 Flat D-Rings at Rear
Flag Holders
1 pair Stake Pockets in Tail Channel
Frame Reinforcement for Single Axle Stinger 26′ Length
Front Beams Tapered
22″ Loaded Deck Height Axles and Suspension
6″ Ground Clearance
12″ Cross Member Spacing (10″ & 4″)
HD Swing Out Outriggers
2 Sets of HD Removable Flat Back Outriggers
Chain Drops on 24″ Centers
7 Bent d-Rings Per Side
5′ Tool Box at Front with 2 Bent D-rings
6′ Bucket Well at Rear with 2 Bent D-rings
Top Flange Reinforcement
50″ Wood Filled Front Flip Load Ramps
1 3/4″ Apitong Decking
3 – 25,000 lb Axles
54 1/2″ Axle Spacing
Ridewell Suspension 2 Tail Light Package with Stainless Steel Covers
2 Pr. Side Markers/1 Pr. Mid-Turn on Deck
Grote Ultra Blue-Seal Wire Harness

16 1/2″ x 7″ Drum Brakes
Spring Brakes on Two Axles
Raise & Lower Valve
Manual Ride Height Control
Air Lift on 3rd Axle
255/70R22.5 Tires
Liquid Filled Air Gauge
Suspension Control in Bolster
Covered Boom Trough- bolt on
HD Wheel Covers Bolt on(54-1/2) Polished Aluminum Outer Wheels
4th Tail Light
3rd tail light package with strobe (no battery)
Battery back for strobe with 4-way plug for FA
Airweigh Quickload Scale
Prepped for Hyd Flip Axle
Air Pop Up Ramps 18* Angle
13 hp Honda in base section/Dual Operation
18″ LDH, 6″ GC(110k, 16′ as 3+1, 12′ as 4 CC)

Now Available
