2,000 Gallon Potable Water Tank
In Stock — Equipment on the Ground
We have two (2) of these 2,000-gallon stainless steel tanks on the ground and available now, ready to be used on any build — truck tank or trailer tank. Skip the tank fabrication lead time and get your unit on the road faster.

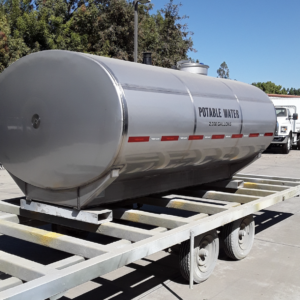

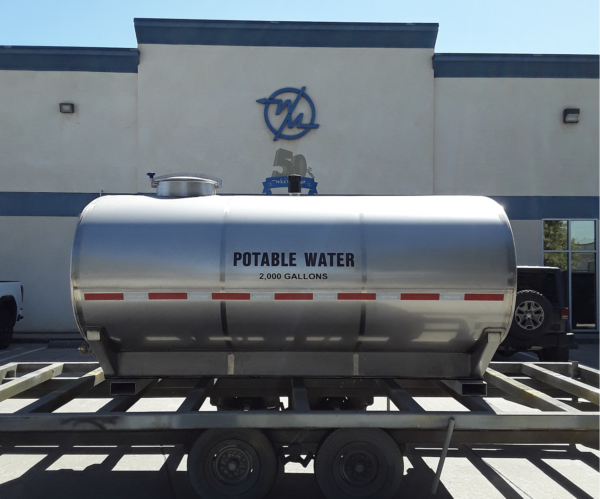

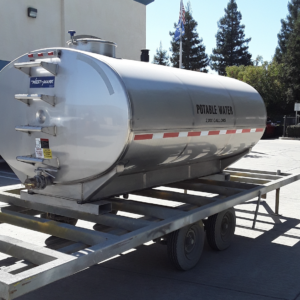

2,000-gallon T-304 stainless steel potable water tank — ready to mount on your 2-axle chassis or build out as a trailer tank.
The West-Mark 2-Axle Potable Water Tank Truck pairs a 2,000-gallon all-stainless tank with stainless wings, bolsters, Z-rail and ladder, then mounts it to your customer-supplied chassis on spring-loaded, rubber-isolated mounts — no hard fixing to the frame. It’s a clean, simple, highway-rated water truck for municipalities, contractors, agriculture and rental fleets that want stainless durability without paying for options they don’t need.
Download Full Specifications (PDF) – click here
Why Fleets Choose This Water Truck
Stainless Where It Counts
12-gauge T-304 2B stainless barrel and heads, 10-gauge stainless baffles, stainless wings, bolsters, Z-rail, upper mounts, ladder and plumbing. No carbon steel in the water path, no paint to maintain on the tank.
Mounted to Last
Heavy-duty spring-loaded mounts with a full-length rubber sill vulcanized to a stainless backing plate isolate the tank from chassis flex — the same approach West-Mark uses on severe-service tankers for the Alaska haul road.
Clean, Serviceable Interior
W-2 interior weld finish with W-3 longitudinal seams, 20″ staggered crawl holes through both baffles, and vent/drain holes sized for free flow and complete drainage.
Simple, Secure Plumbing
3″ stainless split-pipe rear outlet from the sump to a 3″ stainless-disc butterfly valve with lever-lock handle, ending in a 3″ male camlock with lockable brass cap. Padlock/seal lugs at every opening for transport security.
Truck or Trailer — Your Call
The standard build mounts to a customer-supplied 2-axle chassis, keeping your fleet standardized and tying into the truck’s existing LED stop/tail/turn lights per DOT. The same tank can also be built out as a trailer tank — ask our sales engineers which configuration fits your fleet.
Configure It Your Way
The base unit is deliberately lean. Spill dam, liquid level gauge, hydrant fill, pump, hose and hose storage, work lights, beacon, spotlight, mud flaps, paint and F.O.B. destination delivery are all available as options.
Base Specifications
The configuration below reflects the standard unit. Every West-Mark tank is built to customer-driven specifications — our PD&I engineering team can modify any element to your requirement.
General
| Product | Potable water, 8.35 lbs/gal |
| Vessel code | Non-spec; atmospheric pressure |
| Operating temperature | -20°F to 125°F |
| Area / use | 50 states; highway only |
| Chassis | Customer supplied; chassis dimensions provided at time of order |
Tank & Structure
| Barrel | 2,000 gal oval, approx. 54″ × 85″ × 10′ long, no slope; 12 ga T-304 2B stainless |
| Heads | Two 12 ga T-304 stainless, flanged, approx. 4″ dish |
| Baffles | Two 10 ga T-304 2B stainless, air-dished and flanged, 20″ staggered crawl holes |
| Wings, bolsters, Z-rail | Stainless steel |
| Mounting | Heavy-duty spring-loaded mounts; full-length rubber sill vulcanized to stainless backing plate; stainless upper mounts; no hard fixing |
| Weld finish | W-2 interior (W-3 longitudinal seams); W-2 exterior |
| Manhole | 20″ T-316 stainless, single lug, EPDM gasket, hinge stop; rear-mounted, hinged to rear |
| Vent | 3″ vent with stainless anti-splash deflector, synthetic filter media and #10 stainless mesh screen |
| Ladder | Fabricated stainless with slip-resistant steps, welded to rear head |
Plumbing
| Rear outlet | 3″ stainless split pipe out rear head |
| Outlet valve | 3″ butterfly valve, stainless disc and stem, lever-lock handle |
| Connection | 3″ stainless male camlock adapter with lockable brass cap and chain |
| Security | Lugs for padlock/seal-tab security at all openings |
Lighting, Markings & Documentation
| Lights / wiring | LED per DOT; uses truck’s existing stop/tail/turn lights |
| Reflectors / conspicuity | Mounted at sides and rear per DOT |
| Decals | 4″ “POTABLE WATER” and 2″ “2000 GALLONS” on each side |
| Calibration | Theoretical, ¼” increments, with charts |
| Manuals | Operator & maintenance manual (paper + PDF), calibration chart, parts list, vendor literature |
| Paint | None on base unit (stainless); available as option |
Available Options
- Spill dam and liquid level gauge
- Hydrant fill and pumping assembly
- Hose and hose storage
- Work lights, beacon and cab-mounted spotlight
- Mud flaps at front of drive tires
- Paint and F.O.B. destination delivery
Quality & Compliance
Every unit is tested under the West-Mark Quality First Program before final QA inspection. Our ISO 9001:2015 quality system is re-qualified every three years by an outside QA inspector, and new designs are validated with FEA before release to production.
ISO 9001:2015
ASME
AWS D14.3
3A Sanitary
DOT
Built by West-Mark Since 1967
West-Mark has been building stainless steel tank trucks and trailers in California’s Central Valley for nearly 60 years, serving municipal, agricultural, construction and rental fleets across Alaska, Arizona, California, Idaho, Nevada, New Mexico, Oregon, Utah and Washington. Our factory in Atwater uses 3D modeling, FEA and full CAD-CAM fabrication, and our service centers in Ceres and Bakersfield, CA and Fairbanks, AK keep your unit working for the long haul.
Download Full Specifications (PDF) – click here
Two (2) tanks currently in stock and available for truck or trailer builds. Chassis is customer supplied; quote excludes chassis modifications, programming, component relocation and frame stretching or shortening, and is subject to change upon inspection of chassis. West-Mark does not supply a certified tank wash prior to initial customer use. Specifications are nominal and may contain errors or omissions; brand-name components are subject to substitution with an equal or upgraded part.
