Additional Information
| Location | Woodland, CA |
|---|---|
| Manufacturer | Kaufman (SC) |
DISCLAIMER: Price quoted does not include any freight or delivery charges. Specifications are believed to be correct but may contain errors and/or omissions. Pictures are representative and may not be identical. Description and Images © West-Mark

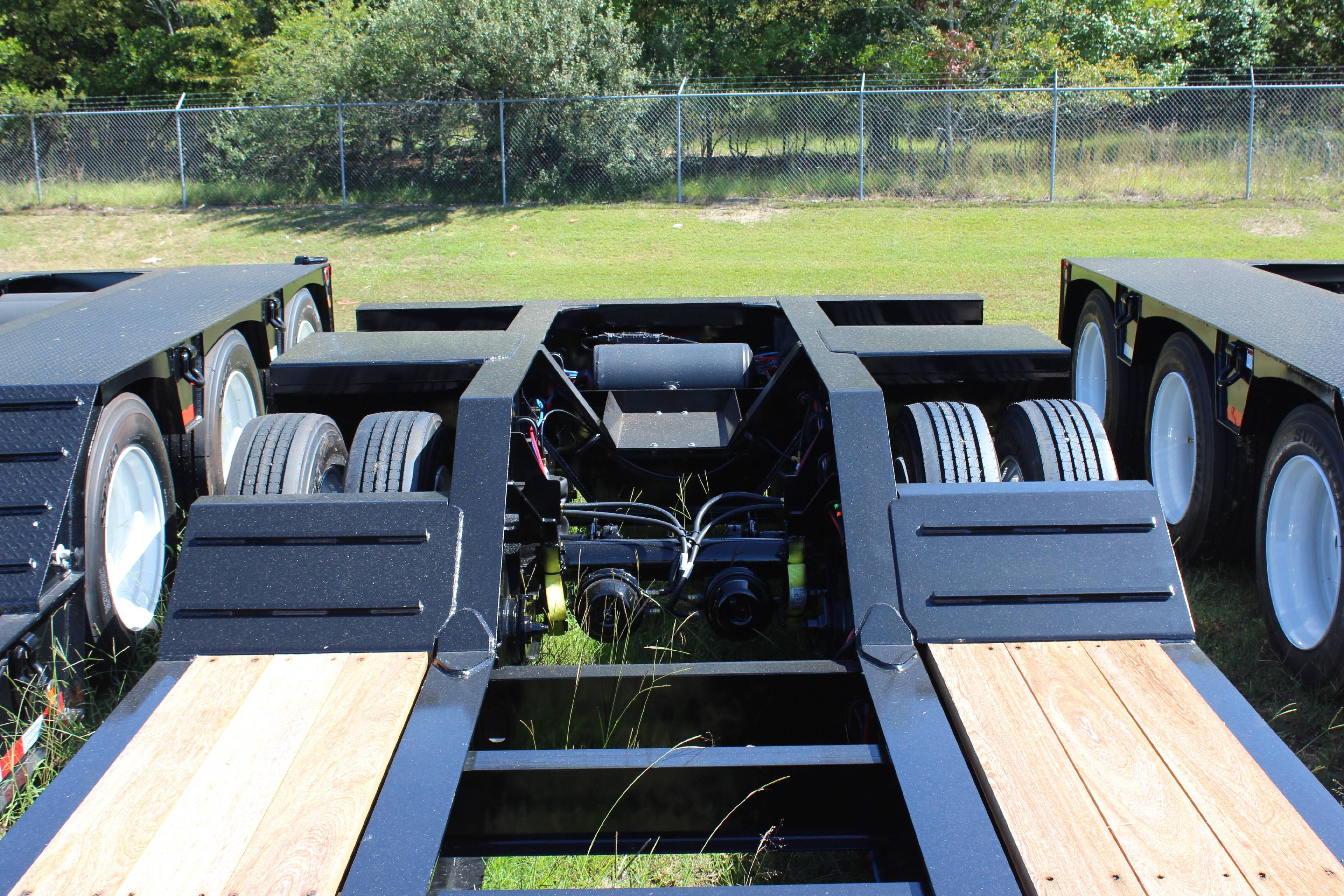

35 TON KAUFMAN RGN LOWBOY TRAILER (SKU-D00591A)
| G.V.W.R. | 86,000 lbs. (Capacity 70,000 lbs. in 12 ft. span or greater) |
| Electrical | Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard |
| Frame | Four cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel. |
| Side Rail | Full Height Fabricated |
| Tongue | Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89″ – 107″ available swingclearances. Comes standard set-up for wet line. |
| Tires | 255/70 R22.5 LRH |
| Floors | Apitong flooring (no center decking) |
| Coupler | SAE 2″ Kingpin (16″ Kingpin Setting) |
| Outriggers | 12″ Swing Out |
| Ramps | Wood Filled Front Flip Ramps |
| Tie Downs | Forged D-rings |
| Deck Length | 24′ well standard. Additional Optional Lengths |
| Deck Height | 24″ (fully loaded) |
| Deck Width | 102″ (Expandable to 126″ with outriggers) |
| Fenders | None |
| Lower Deck | 24′ well length |
| Bucket Well | None |
| Boom Trough | 14″ Drop |
| Brakes | All wheel 16.5″ x 7″ air brakes, automatic slack adjusters, and 4S/2M ABS |
| Wheels | 10 hole Steel disc / hub piloted inners and Aluminum Dura-Bright outers |
| Axles | 2 – 25,000 lb. axles (5″ round, 5/8″ wall thickness) w/ oil bath hubs w/ override straps |
| Suspension | Air ride suspension |
| Height Control | Adjustable Height Control Valve |
| Toolbox | 20″ x 42″ Lockable Lid Toolbox |
| Finish | Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer; BLACK |
| Other Wide Center bolster with chain slots and flag holder slot. Double outriggers at front of trailer. | |
