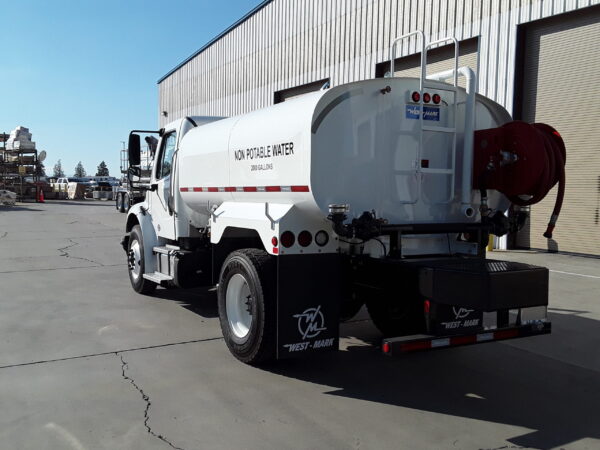

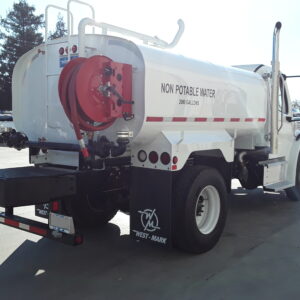

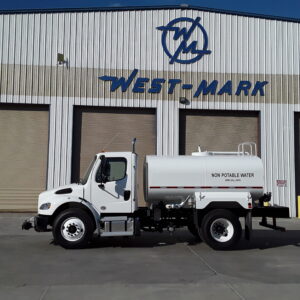

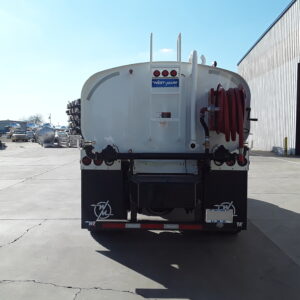

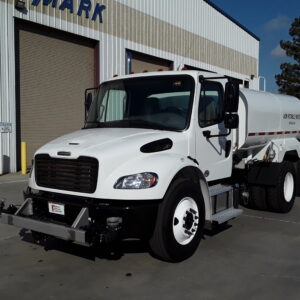

2000 GL CS DUST CONTROL TRUCK (26K) (M41742)
GENERAL The following equipment shall be a new dust control tank truck. PRODUCT: Non-potable water. PRODUCT WEIGHT: 8.35 lbs./gallon. VESSEL CODE: Non-Spec. TANK OPERATING PRESSURE: Atmosphere. TANK OPERATING TEMPERATURE: 125° F maximum INTENDED AREA OF OPERATION: 50 States. INTENDED USE: Highway and Off-Road Construction Sites.
CHASSIS New Freightliner model M2 106 conventional cab, 2-door chassis: BRAKES: Air type DRIVE: 4 X 2 GVWR: 26,000 lbs Front Axle: 10,000 lbs Capacity Rear Axle: 23,000 lbs Capacity, Spring Suspension Engine: Cummins ISB 250 HP and 660 lb/ft torque; CARB Compliant Transmission: Allison 2500 RDS automatic • Cab color to be White • Maintenance free batteries • Remote mounted positive & negative posts for jumpstart • Vertical tailpipe mounted at RH side • Coolant rated to -34F • Engine block heater • Front tow hooks, eye(s), or pin (application varies based GVWR) • LH and RH grab handles • Air horn • Electric horn(s) • Daytime running lights • LH and RH convex mirrors mounted under primary mirrors • Heater, defroster, and air conditioner • One (1) each 12V power supply in dash • Speedometer/Odometer capable of displaying in both miles and kilometer, with trip and hour meter. • Adjustable tilt and telescoping steering column • Back-up alarm • AM/FM/WB radio with Bluetooth and Auxiliary inputs • Fuel capacity 50 gallons • Cab suspension – Air Ride • Air driver and fixed passenger seats • Heated mirrors (flat and convex) • Heated fuel/water separator • Traction tires on rear axle • Steel wheels • Towing extended/roadside service warranty, 1 year/unlimited miles/km, $1200 cap
BODY • 2,000 Gallon Non-Potable water painted steel tank made of 3/16” A36. • Heads, 3/16″ A36 • Baffle(s) 3/16″ A36. • U-shaped subframe. • Belly Plate, 1/4″ full length. • Rubber pads between tank and frame. • Tank Mounts, four (4) solid. • Manway, 24″ circular One (1) • Vortex Breaker, plate w/ screen • Hydrant Fill, 2.5″ w/ swivel swing spout • Sight Gauge(s), two (2); front and rear mounted w/ shut-offs. • Ladder, one (1) rear mounted w/ handrails. • Fenders, two (2) bonnet style single axle. • Walkway, non-skid top of tank. • Light Kit, D.O.T. L.E.D. • Conspicuity tape, D.O.T. • Mud flaps, rear mounted. • Paint, tank to be WHITE to match cab. • Pump, water 750 gpm rated. • PTO, hot Shift • Controls, PTO Cab mounted. • Driveline, 1000 series PTO shaft • Pump plumbing • All plumbing components welded with groove couplers. • Distribution manifold. • Front Sprayers, two (2) with adjustable fan heads. • Rear Sprayers, two (2) with adjustable fan heads. • Side spray left hand side, duck bill with manual up/down operation • Discharge, 1.5″ ball valve driver’s side. • Control Switches, cab mounted. • Push Block, storage area with lid • Bumper, rear per D.O.T. • Paint, frame and plumbing components BLACK. • Low point drains installed in all plumbing. • Manhole Lid – NONE (Available as option upon request) • Rear Dump- NONE. (Available as option upon request) • Monitor/Water Cannon – NONE. (Available as option upon request) • RH Side Spray – None. (Available as option upon request) • Hose Reel – NONE; provisional bracket only. (Available as option upon request) • Suction Loading System w/ suction hoses and hose storage- NONE. (Available as option upon request) • Back-up Camera – NONE. (Available as option upon request) • Beacon(s) – NONE. (Available as option upon request) • Tow Hitch – NONE. (Available as option upon request) • Tool Cabinet on side of frame – NONE. (Available as option upon request) Warranty, unit shall be free from defects in material and workmanship for a period of ONE (1) year.
